| ■ 품명(ITEM) : CONVEYOR FRAME (Model no. : FCP 45135) |
|
 |
|
|
|
| ◆ |
기술 DATA (TECHNICAL DATA) |
| |
재질 (ALLOY) : A6N01 - T5
표면처리 (FINISH) : SILVER ANODIZED COAT
단면적 (CROSS SECTION AREA) :1384.82㎟
단중량 (UNIT WEIGHT) : 3.73kg/m |
| |
|
| ◆ |
용도 (USE) |
| |
CHAIN CONVEYOR (RS 40)
PALLET CONVEYOR |
| |
|
|
| |
|
|
|
|
|
| ■ 품명(ITEM) : CONVEYOR FRAME (Model no. : FCP 60165) |
|
 |
|
 |
|
| ◆ |
기술 DATA (TECHNICAL DATA) |
| |
재질 (ALLOY) : A6N01 - T5
표면처리 (FINISH) : SILVER ANODIZED COAT
단면적 (CROSS SECTION AREA) :1956.27㎟
단중량 (UNIT WEIGHT) : 5.28kg/m |
| |
|
| ◆ |
용도 (USE) |
| |
CHAIN CONVEYOR (RS 60)
PALLET CONVEYOR |
| |
|
|
| |
|
|
|
|
|
| ■ 품명(ITEM) : PROFILE RAIL |
 |
|
 |

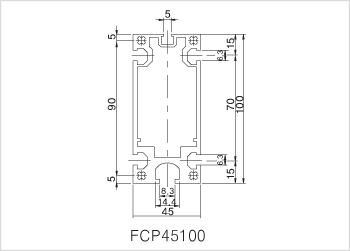

● CONVEYOR FRAME
(MODEL
NO. FCP45100) |
|
● CONVEYOR FRAME
(MODEL NO.
FCP45100) |
 |
|
 |

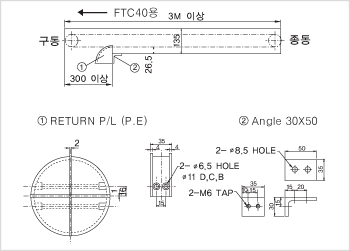

| ● RETURN SHOE FTC-40 |
|

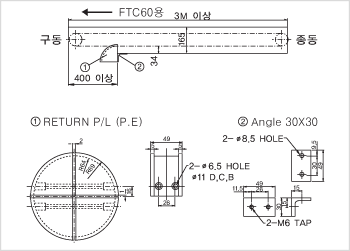

● RETURN SHOE FTC-60 |
| |
|
|
 |
|
 |
|
|
|
>
